Brand:Manoli Spray Gun

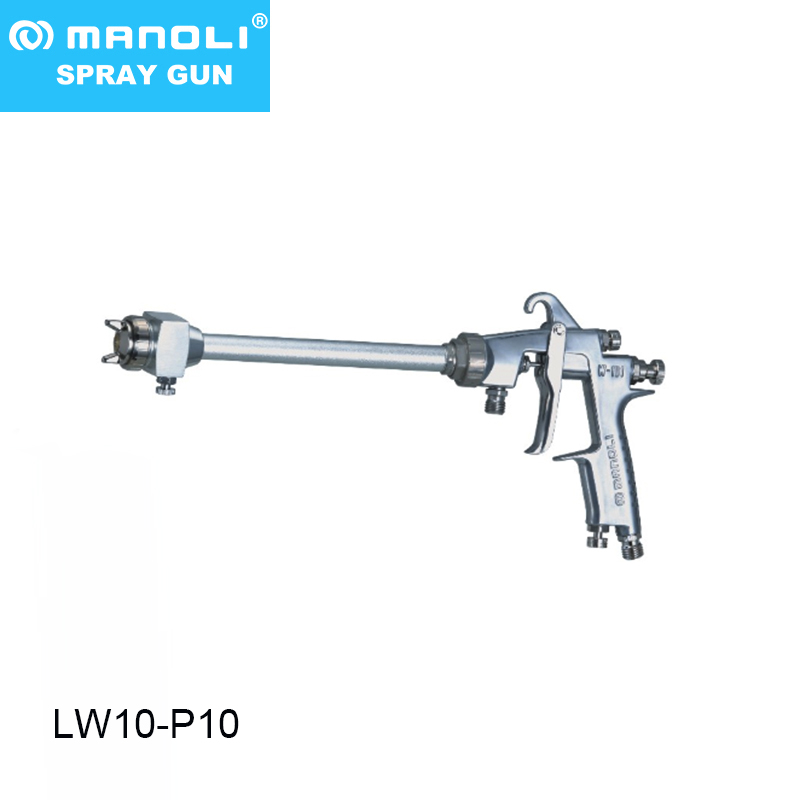

Model:LW10-P10
Advantage:The extension nozzle spray gun is suitable for painting operation in hard-to-reach places; The extension nozzle is made using special designs to achieve high transfer efficiency and fast speed of spraying; The connecting pipe and paint pipe of the spray gun are made of stainless steel, which are unbending, not deformative, anti-wear and anti-corrosive; The air cap, the fluid nozzle and the fluid needle are made of first-class stainless steel for waterborne paints; The extension spray gun has many different kinds of optional and special lengths of extension nozzles.
Application:
Material:Stainless steel
For more information,please E-mail or call our 24-hour hotline.
Model |
Fluid nozzle
orifice
Φmm
|
Applied air
cap model
|
Spraying air
pressure
MPa(kgf/cm 2)
|
Air
consumption
l/min
|
Fluid
output
ml/min
|
Pipe
length
mm
|
Spray
distance
mm
|
Pattern
width
mm
|
Weight
g
|
LW10-P08 | 0.8 | E2P | 0.29 (3.0) | 270 | 150 |
50
150
200
300
500
800
|
200 | 190 | 505-852 |
LW10-P10 | 1.0 | 200 | 220 | ||||||
LW10-P13 | 1.3 | 0.24 (2.5) | 220 | 200 | 210 | ||||
LW10-P15 | 1.5 | 250 | 240 | ||||||
LWA10-P08 | 0.8 | 0.29 (3.0) | 270 | 150 | 190 | 749-1016 | |||
LWA10-P10 | 1.0 | 200 | 220 | ||||||
LWA10-P13 | 1.3 | 0.24 (2.5) | 220 | 200 | 210 | ||||
LWA10-P15 | 1.5 | 250 | 240 |
