W-71 general purpose manual pneumatic spray gun with conventional high atomization technology

Appearance
Exquisite appearance and high-precision parts and accessories show our spirit to focus on high quality.
Maximize hardness of fluid nozzle and fluid needle by using precision machining technology,  high-frequency quenching.
No paint leaks because of quality test of fluid nozzle for million times

Functions and features:

• The fluid nozzle and fluid needle which are made of heat-treated materials, are hard and anti-wear, and can lengthen their working life;

• The fluid nozzle can be taken apart and cleaned and the spray gun has an air nipple which makes air come in quickly;

• Fine and uniform atomization;

• Suitable for perfect finishes of products, such as furniture, household appliances, automobiles, pianos and plastic workpieces.

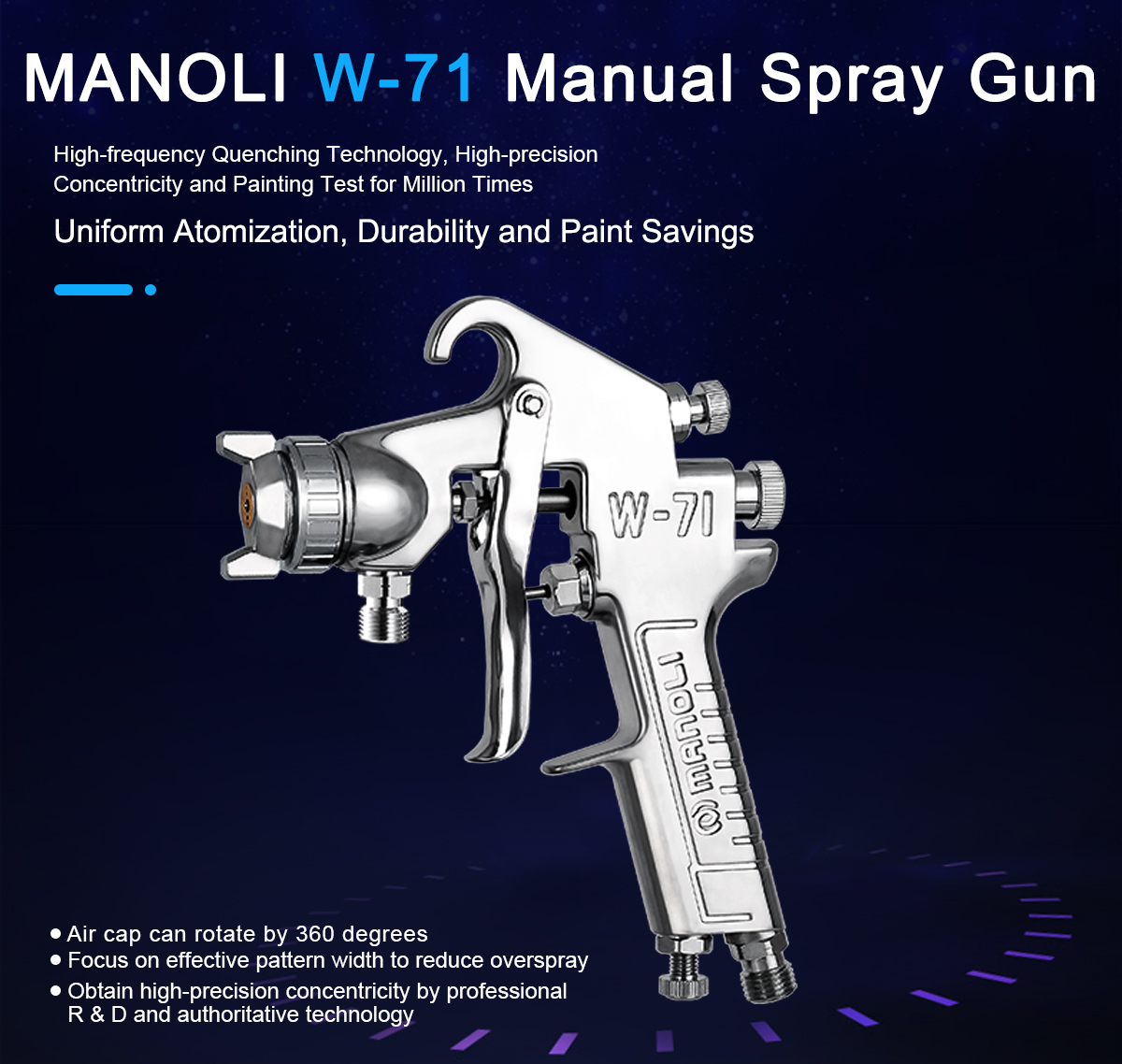

Advantages of MANOLI W-71 Manual Spray gun
High-frequency Quenching Technology, High-precision Concentricity and Painting Test for Million Times
Uniform Atomization, Durability and Paint Savings
Air cap can rotate by 360 degrees
Focus on effective pattern width to reduce overspray
Obtain high-precision concentricity by professional R & D and authoritative technology

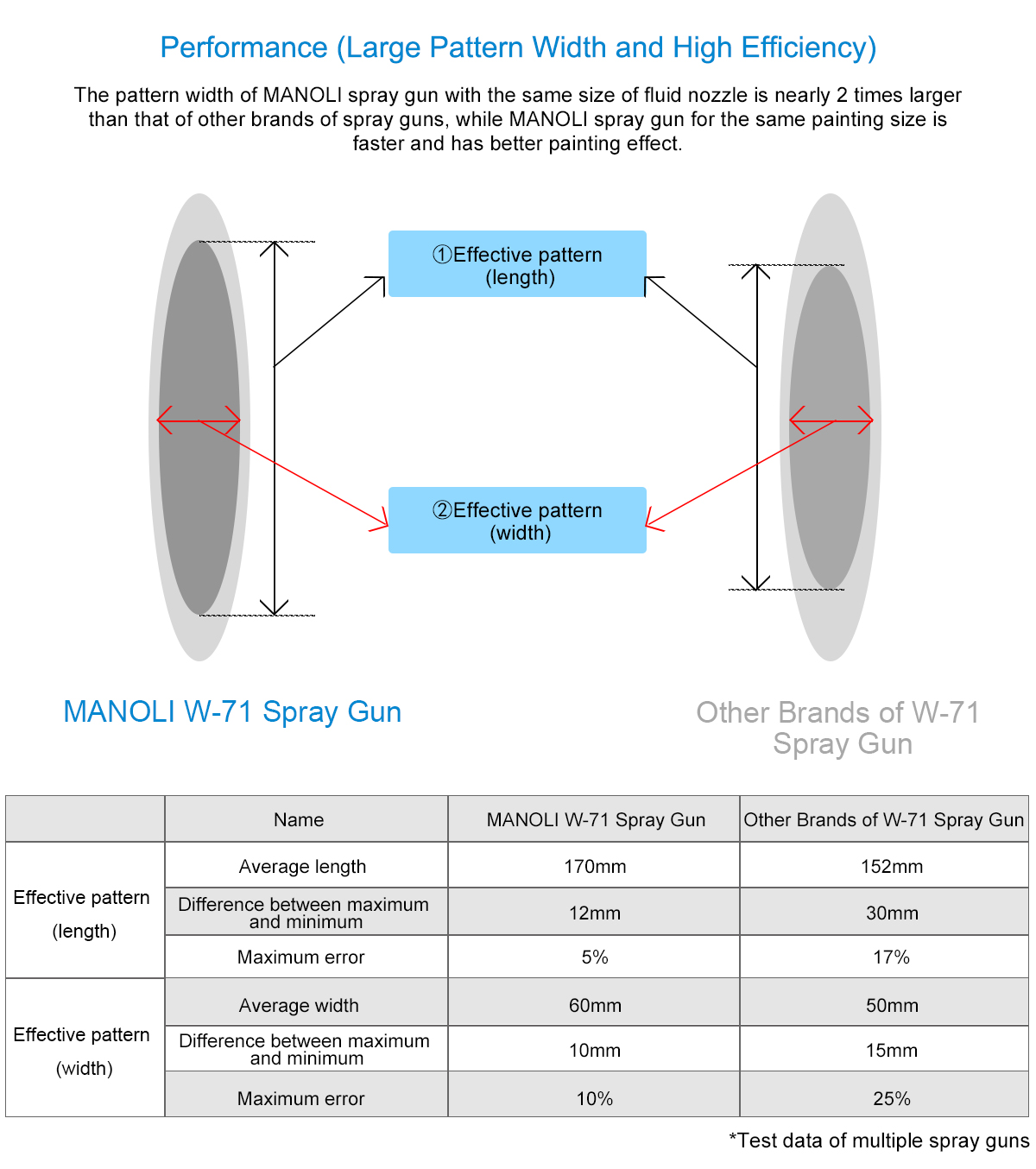

The pattern width of MANOLI spray gun with the same size of fluid nozzle is nearly 2 times larger than that of other brands of spray guns, while MANOLI spray gun for the same painting size is faster and has better painting effect.

The Principle of Air Spray Gun and Its Structure
Air atomizes fluids and makes fluids come out from nozzle slowly, while high-speed airflow surrounds fluids. Fluids and air accelerate to rub together and then it makes fluids disperse to achieve atomization.
Air spraying is able to achieve better painting quality, and it is called as car painting or A type painting.

Type of Feed and How to Choose
There are three different types of feed for different users.

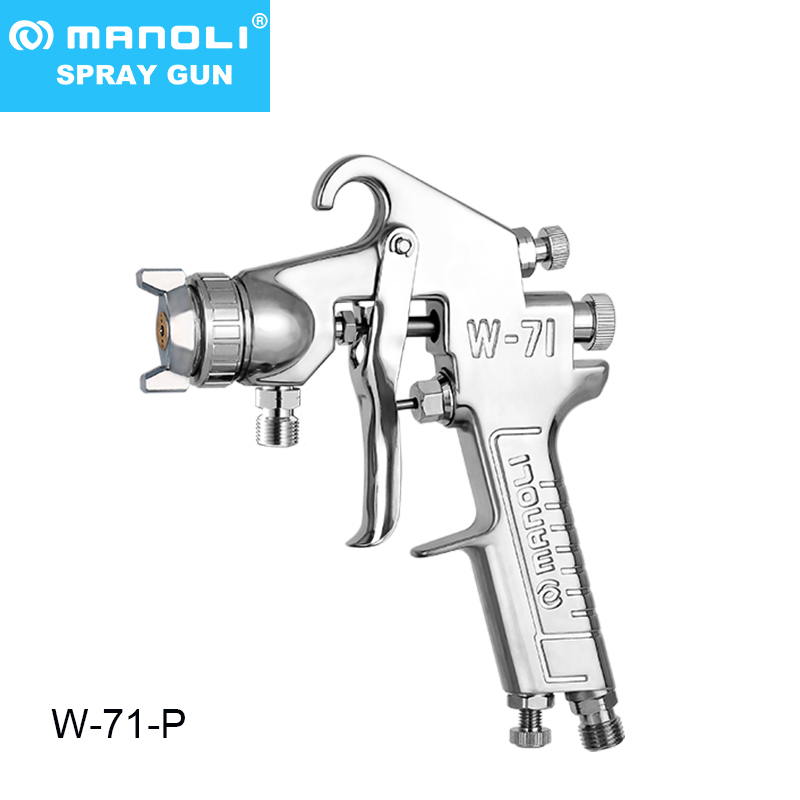

Pressure Type
Suitable for mass production or continuous production with all kinds of pressure tanks or pneumatic double diaphragm pumps.

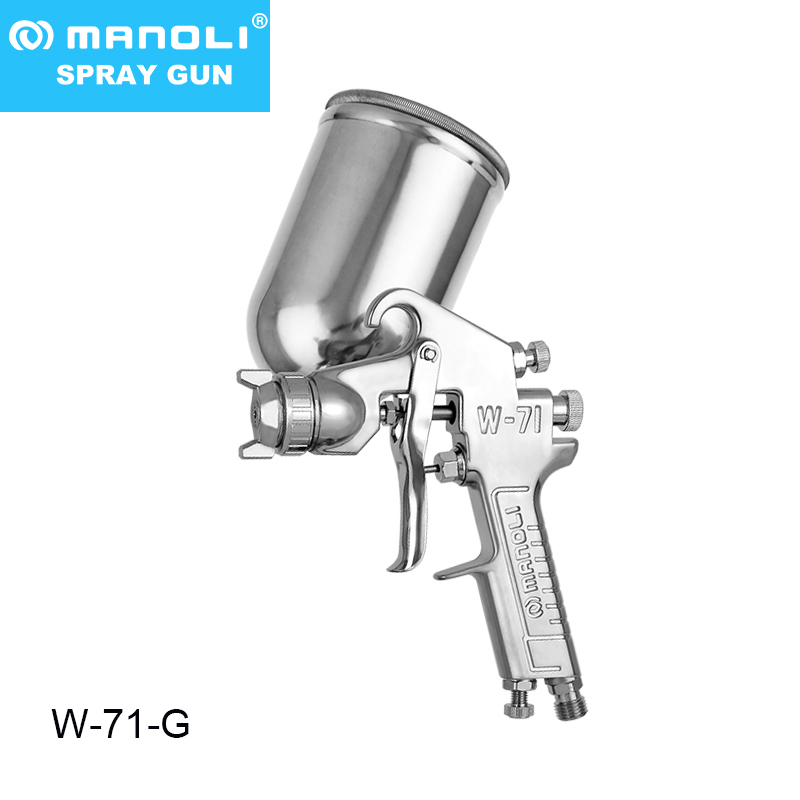

Gravity Type (Gravity Cup)
The gravity cup is on the side of the spray gun and it’s volume is 400ml. The cup can be adjustable freely and its operation is flexible.

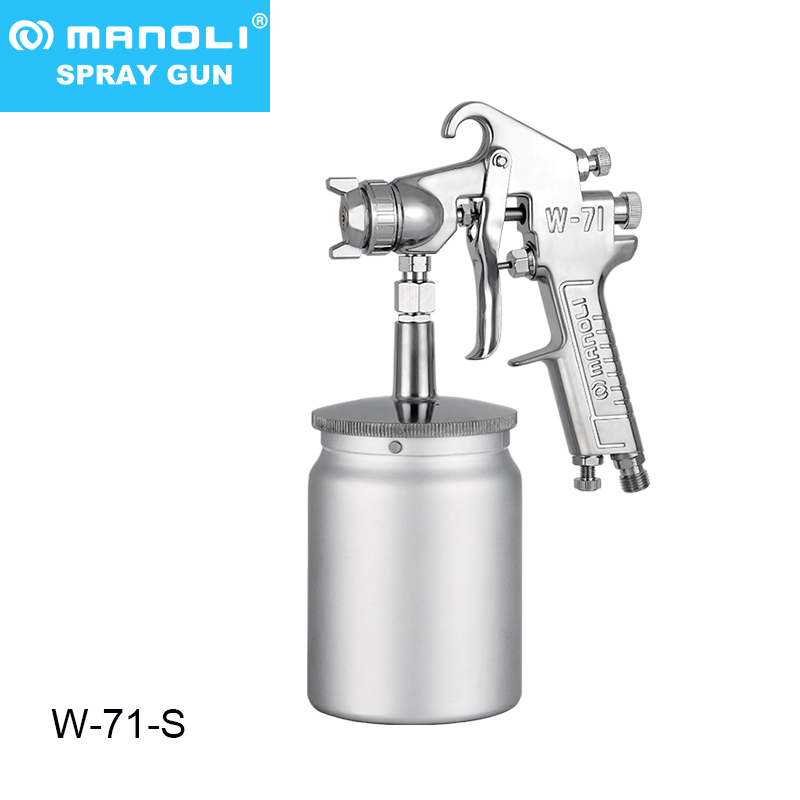

Suction Type (Suction Cup)
The suction cup is below the spray gun and its volume is 600ml for heavy workload.

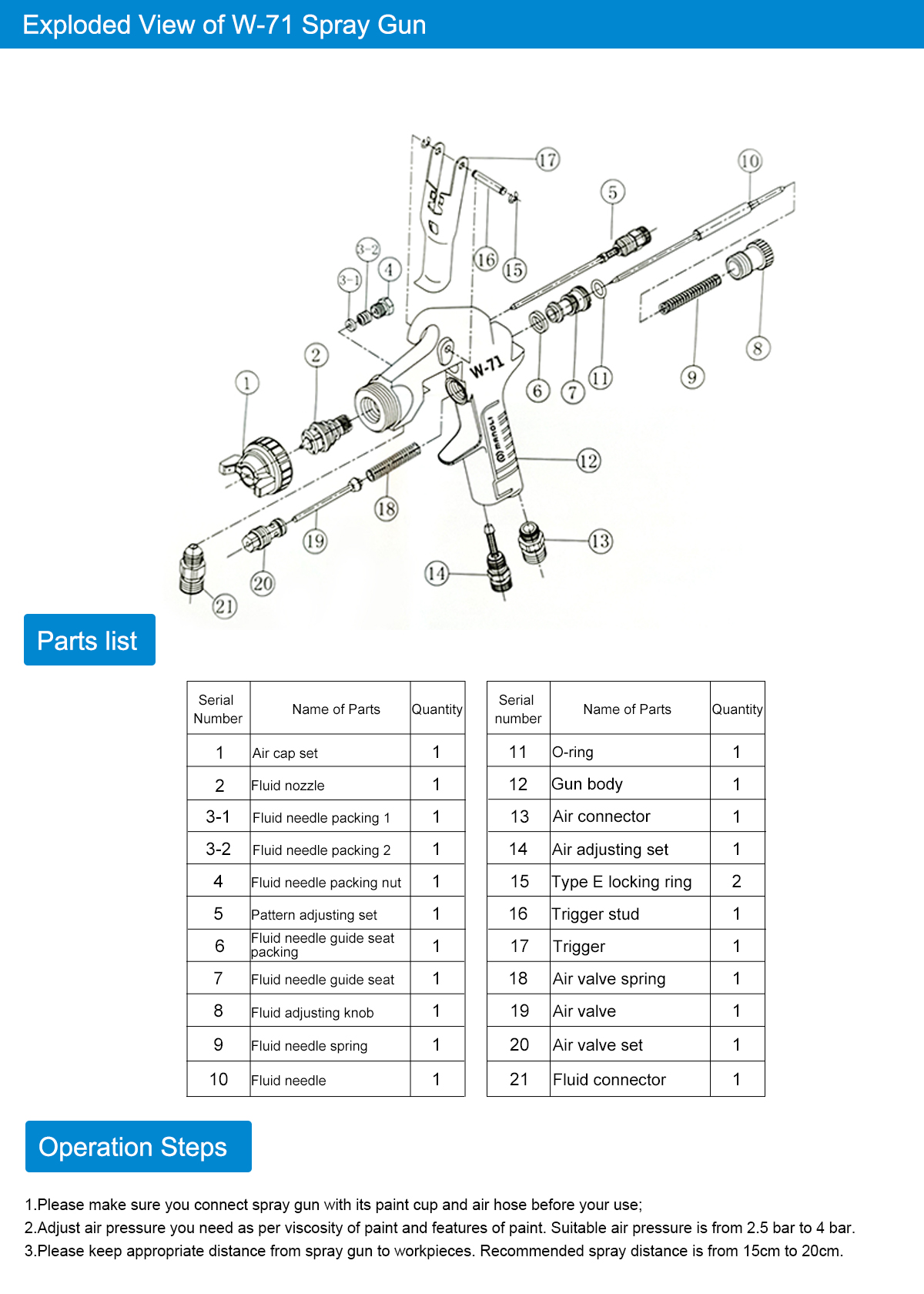

Operation Steps
1.Please make sure you connect spray gun with its paint cup and air hose before your use;
2.Adjust air pressure you need as per viscosity of paint and features of paint. Suitable air pressure is from 2.5 bar to 4 bar.
3.Please keep appropriate distance from spray gun to workpieces. Recommended spray distance is from 15cm to 20cm.
