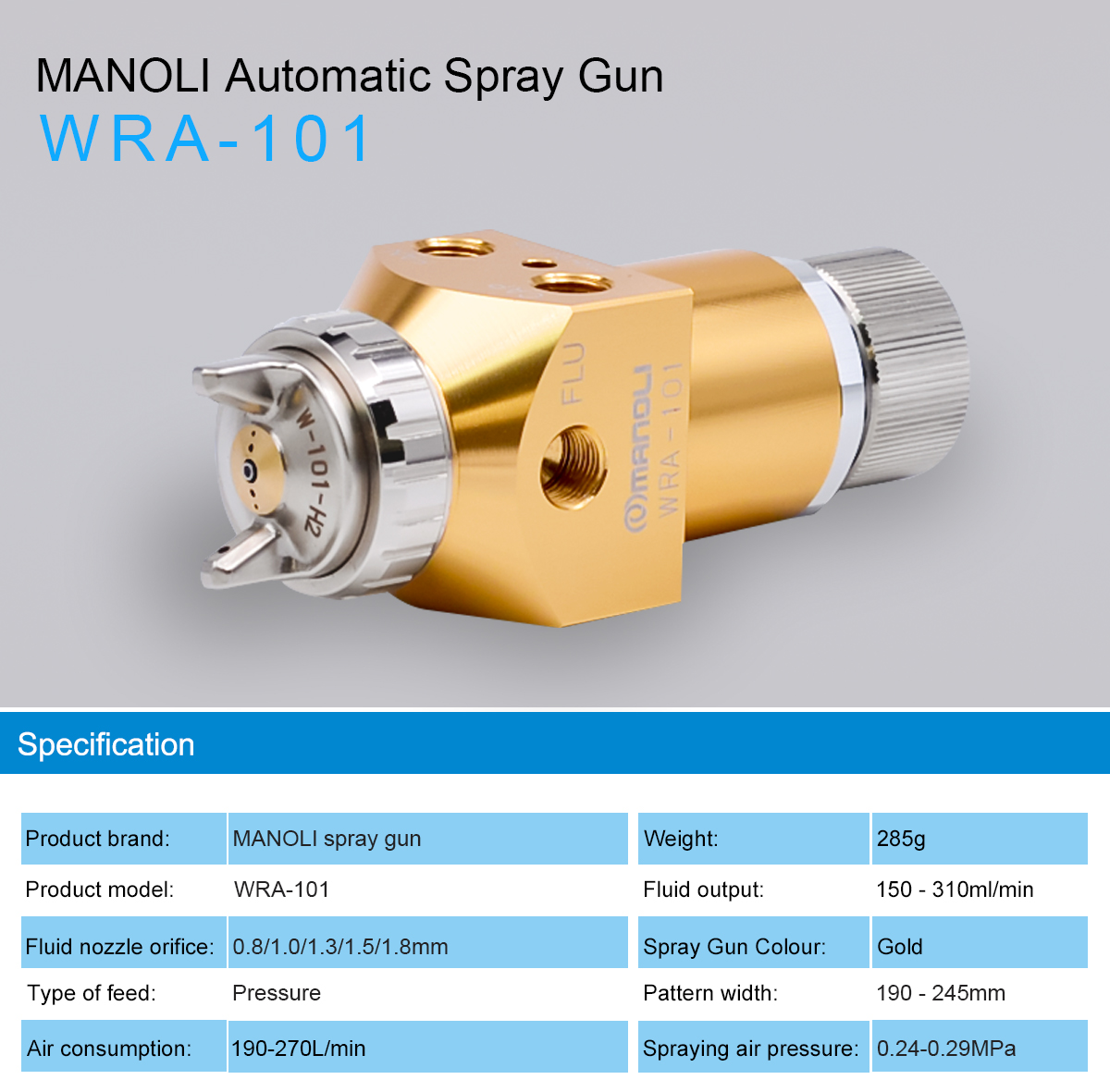

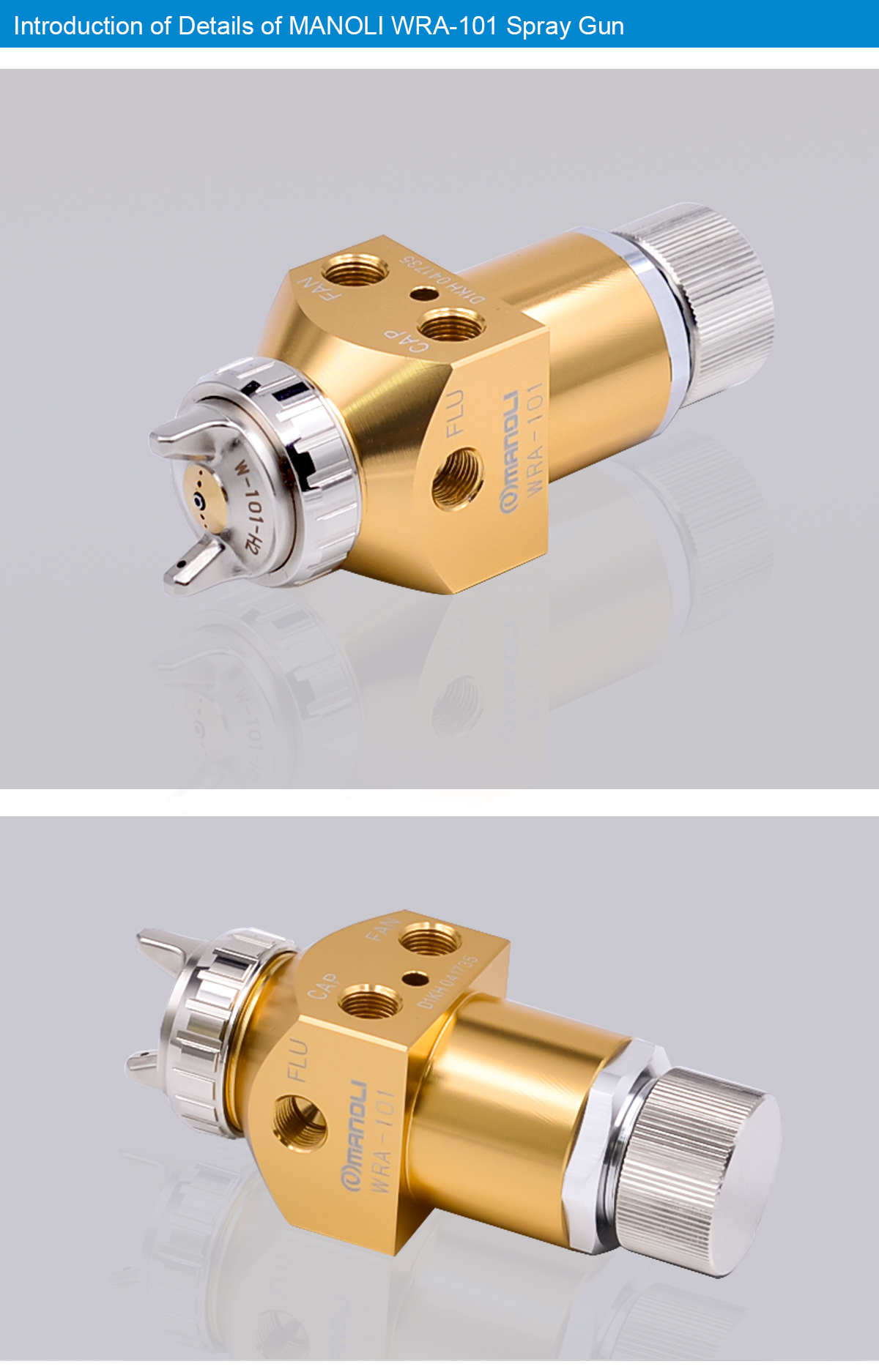

WRA-101 automatic water based paint spray gun used with robots

BACKWRA-101 automatic water based paint spray gun used with robots

Brand：Manoli Spray Gun

Model：WRA-101

Advantage：Functions and features: A long and narrow spray pattern, uniform and optimum atomization, a large pattern width and finely atomized paint particles; High-efficiency and fast application; Easy operation and a lightweight gun body; Easy to clean the fluid nozzle because of the fluid circulation hole set in the spray gun; As required, inlet pressure is adjustable from 2.5bar to 3.0bar to reduce bounceback and save paint; Used with mechanical arms or automatic painting equipment for mass production. The parameters of inlet pressure and pattern width can be set outside, so that it can be remotely adjusted and controlled independently to reduce operational problems.

Application：Widely used in all kinds of industries, such as computer housing, mobile phone housing, cosmetics, furniture, hand tools, medicine, food, textile, glass, plastic, rubber, printing, die-casting, building materials and hardware.

Material：

For more information,please E-mail or call our 24-hour hotline.

facebook
twitter
googleplus
pinterest
More
linkedin vk google digg reddit stumbleupon delicious

WRA-101 automatic water based paint spray gun used with robots

Product Details

WRA-101 automatic water based paint spray gun used with robots

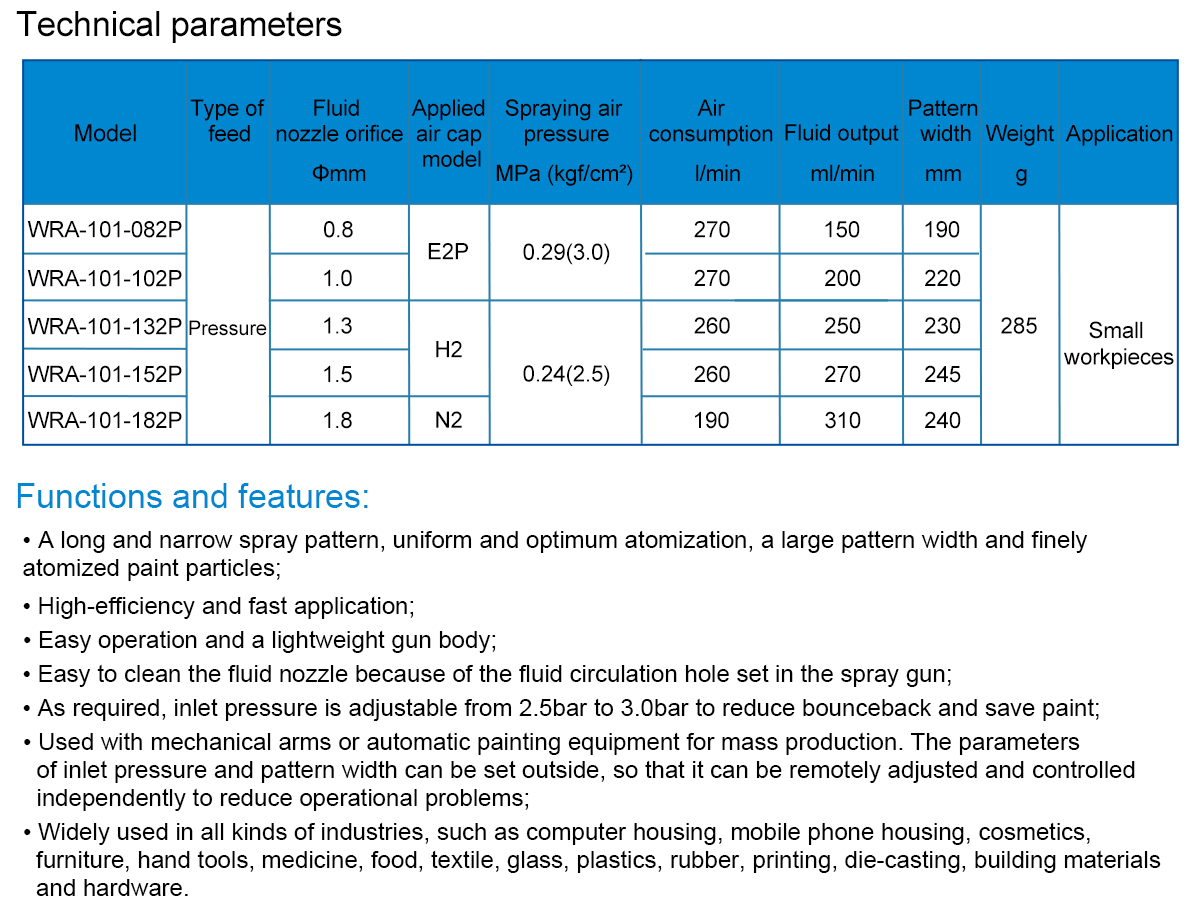

Functions and features:

• A long and narrow spray pattern, uniform and optimum atomization, a large pattern width and finely atomized paint particles;
• High-efficiency and fast application;
• Easy operation and a lightweight gun body;
• Easy to clean the fluid nozzle because of the fluid circulation hole set in the spray gun;
• As required, inlet pressure is adjustable from 2.5bar to 3.0bar to reduce bounceback and save paint;
• Used with mechanical arms or automatic painting equipment for mass production. The parameters of inlet pressure and pattern width can be set outside, so that it can be remotely adjusted and controlled independently to reduce operational problems;
• Widely used in all kinds of industries, such as computer housing, mobile phone housing, cosmetics, furniture, hand tools, medicine, food, textile, glass, plastic, rubber, printing, die-casting, building materials and hardware.

The Principle of Air Spray Gun and Its Structure
Air atomizes fluids and makes fluids come out from nozzle slowly, while high-speed airflow surrounds fluids. Fluids and air accelerate to rub together and then it makes fluids disperse to achieve atomization.
Air spraying is able to achieve better painting quality, and it is called as car painting or A type painting.

Advantages of Our Company
Abundant common products can meet the needs of different production lines
Advantage of Brand
16-year brand
MANOLI has more than 16 years of rich experience and provides services for more than 2,196 customers directly or indirectly, including large enterprises, such as KONE, GUANGRI, YINLONG NEW ENERGY, BYD and so on.
Advantage of Products
64 Different Kinds of Products
All of MANOLI products have 10 large types, 64 models and 2,516 product parts and accessories to meet the needs of customers from different kinds of industries. All of MANOLI products are enough and in stock.
Advantage of Quality
Factory Provides the Original Products
MANOLI is a professional air spray gun manufacturer which provides all different kinds of not only standard spray guns but also OEM products directly for our customers. MANOLI products have been tested in the market and they are so good and durable.
Advantage of Services
5S Class Service Support
MANOLI provides free services, such as troubleshoot problems on the spot, option of products, parts and accessories supply, maintenance, service consulting, OEM, etc. After-sales service team promises to solve customers’ problems within 24 hours.

Operation Steps
1.Please make sure you connect spray gun with its paint cup and air hose before your use;
2.Adjust air pressure you need as per viscosity of paint and features of paint. Suitable air pressure is from 2.5 bar to 4 bar.

3.Please keep appropriate distance from spray gun to workpieces. Recommended spray distance is from 15cm to 20cm.
