BACKLRA-101 HVLP paint gun used with robots

Brand:Manoli Spray Gun

Model:LRA-101

Advantage:Functions and features: Uniform and optimum atomization, a large pattern width and finely atomized paint particles; High-efficiency painting and easy operation; Inlet pressure is adjustable from 2.0bar to 2.7bar as required and the air pressure in the air cap is less than 0.7bar, resulting in less bounceback and high transfer efficiency, so that paint consumption is reduced by from 20% to 30%; Suitable for metal powders, which can be applied uniformly by the spray gun and won’t be deposited; Used with mechanical arms or automatic painting equipment for mass production. The parameters of inlet pressure, pattern width and fluid output can be set outside, so that it can be remotely adjusted and controlled independently to reduce operational problems.

Application:Widely used in all kinds of industries, such as computer housing, mobile phone housing, cosmetics, furniture, hand tools, medicine, food, textile, glass, plastics, rubber, printing, die-casting, building materials and hardware.

Material:

For more information,please E-mail or call our 24-hour hotline.

Product Details

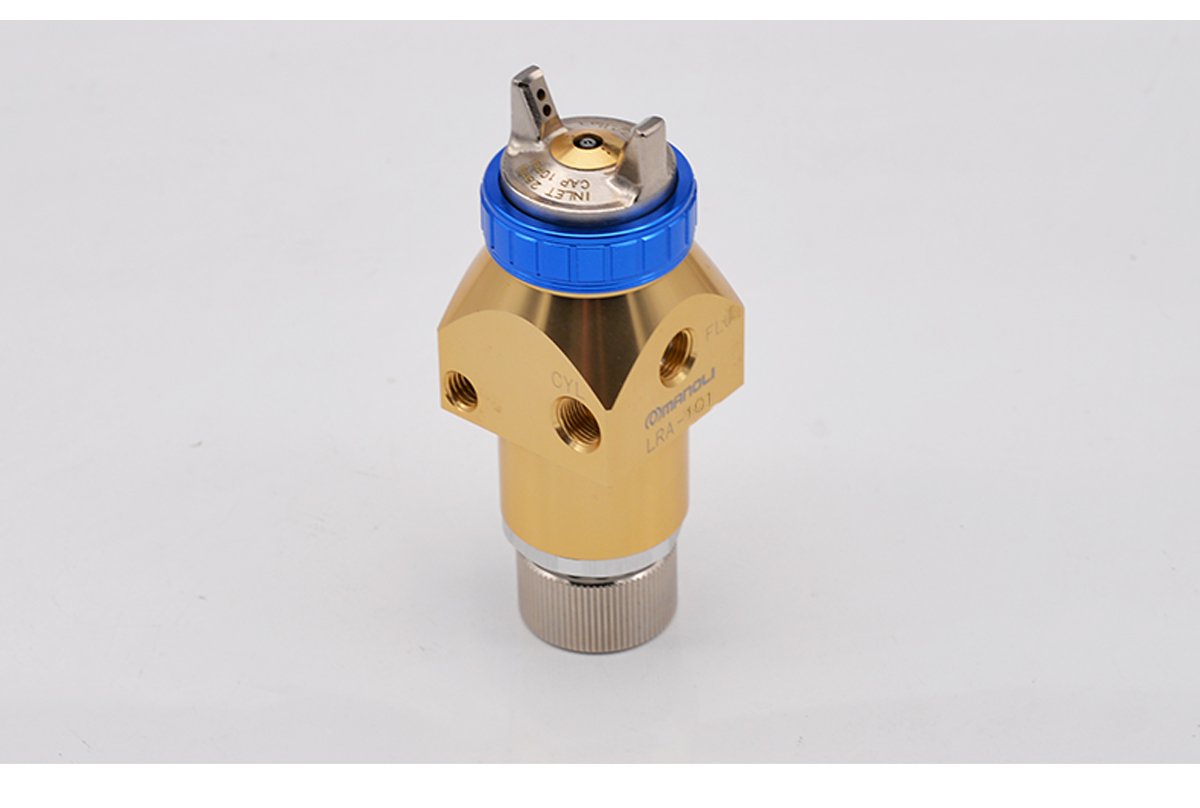

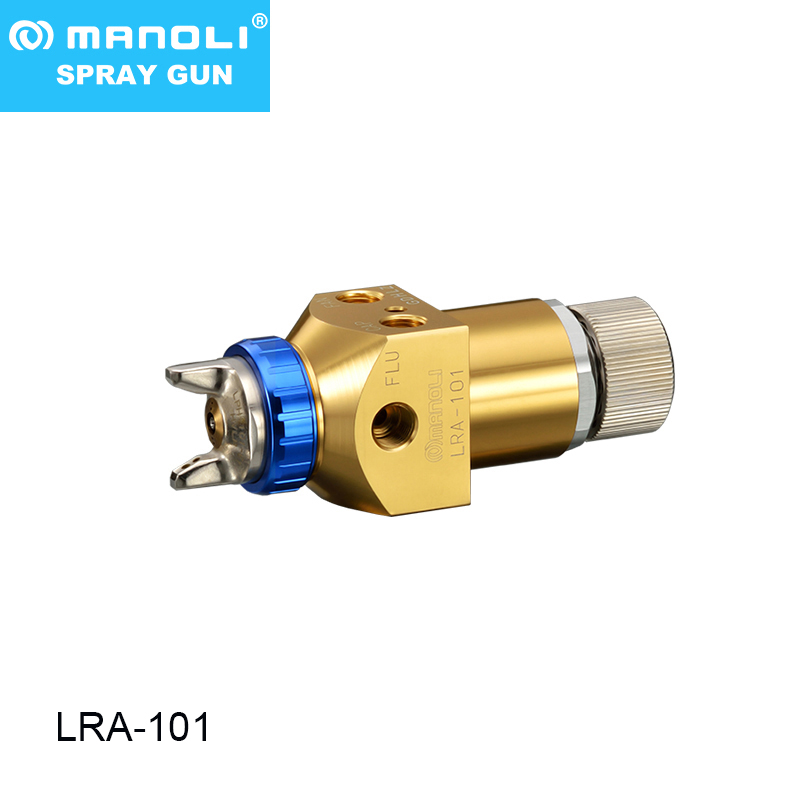

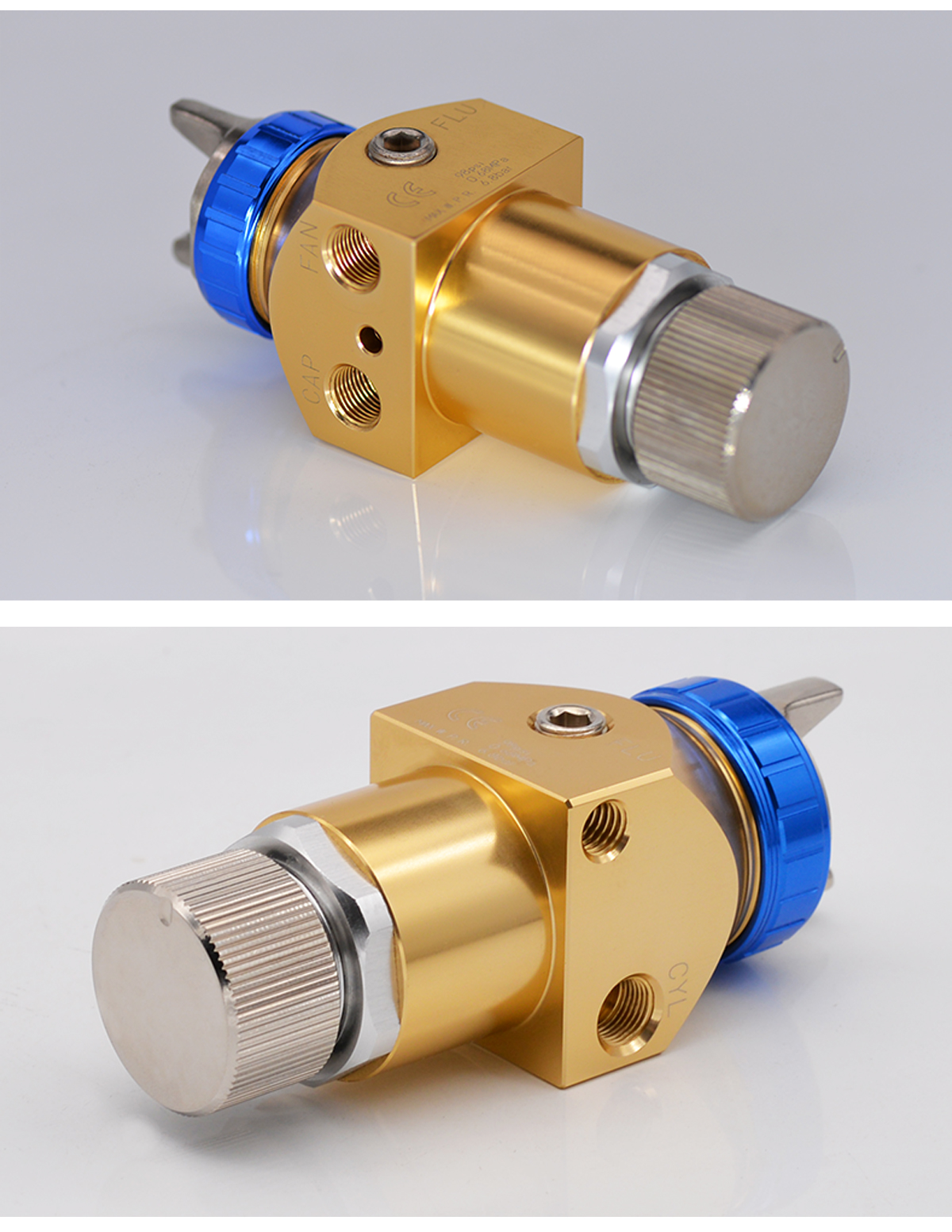

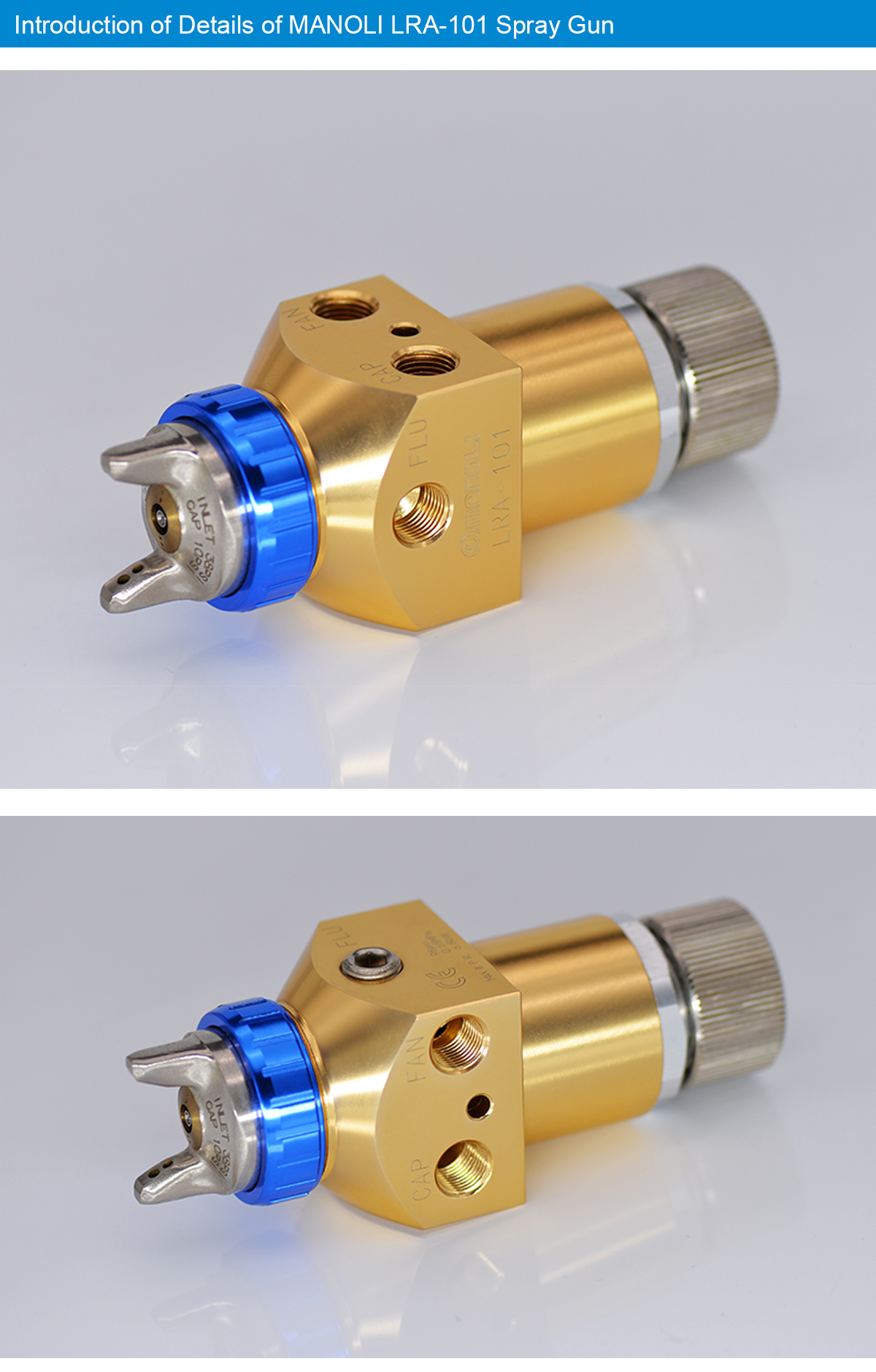

LRA-101 HVLP paint gun used with robots







Functions and features:

• Uniform and optimum atomization, a large pattern width and finely atomized paint particles;
• High-efficiency painting and easy operation;
• Inlet pressure is adjustable from 2.0bar to 2.7bar as required and the air pressure in the air cap is less than 0.7bar, resulting in less bounceback and high transfer efficiency, so that paint consumption is reduced by from 20% to 30%;
• Suitable for metal powders, which can be applied uniformly by the spray gun and won’t be deposited;
• Used with mechanical arms or automatic painting equipment for mass production. The parameters of inlet pressure, pattern width and fluid output can be set outside, so that it can be remotely adjusted and controlled independently to reduce operational problems;
• Widely used in all kinds of industries, such as computer housing, mobile phone housing, cosmetics, furniture, hand tools, medicine, food, textile, glass, plastics, rubber, printing, die-casting, building materials and hardware.





The Principle of Air Spray Gun and Its Structure

Air atomizes fluids and makes fluids come out from nozzle slowly, while high-speed airflow surrounds fluids. Fluids and air accelerate to rub together and then it makes fluids disperse to achieve atomization.
Air spraying is able to achieve better painting quality, and it is called as car painting or A type painting.


Advantages of Our Company
Abundant common products can meet the needs of different production lines
Advantage of Brand
16-year brand
MANOLI has more than 16 years of rich experience and provides services for more than 2,196 customers directly or indirectly, including large enterprises, such as KONE, GUANGRI, YINLONG NEW ENERGY, BYD and so on.
Advantage of Products
64 Different Kinds of Products
All of MANOLI products have 10 large types, 64 models and 2,516 product parts and accessories to meet the needs of customers from different kinds of industries. All of MANOLI products are enough and in stock.
Advantage of Quality
Factory Provides the Original Products
MANOLI is a professional air spray gun manufacturer which provides all different kinds of not only standard spray guns but also OEM products directly for our customers. MANOLI products have been tested in the market and they are so good and durable.
Advantage of Services
5S Class Service Support
MANOLI provides free services, such as troubleshoot problems on the spot, option of products, parts and accessories supply, maintenance, service consulting, OEM, etc. After-sales service team promises to solve customers’ problems within 24 hours.


Operation Steps
1.Please make sure you connect spray gun with its paint cup and air hose before your use;
2.Adjust air pressure you need as per viscosity of paint and features of paint. Suitable air pressure is from 2.5 bar to 4 bar.

3.Please keep appropriate distance from spray gun to workpieces. Recommended spray distance is from 15cm to 20cm.
