BACKMAL-H1 LVMP manual paint spray gun spare parts
Brand：Manoli Spray Gun
Model：MAL-H1
Advantage：Functions and features:
Reduce touch-ups and refinishing due to low pressure and low air volume;
With a reduction of spraying air pressure, reduce overspray and save approximately 10% paint;
A large pattern width;
A lightweight gun body coupled with a smaller triggering load.
Application：Widely used in a variety of products and industries.
Material：
For more information,please E-mail or call our 24-hour hotline.
• Reduce touch-ups and refinishing due to low pressure and low air volume; • With a reduction of spraying air pressure, reduce overspray and save approximately 10% paint; • A large pattern width; • A lightweight gun body coupled with a smaller triggering load; • Widely used in a variety of products and industries.

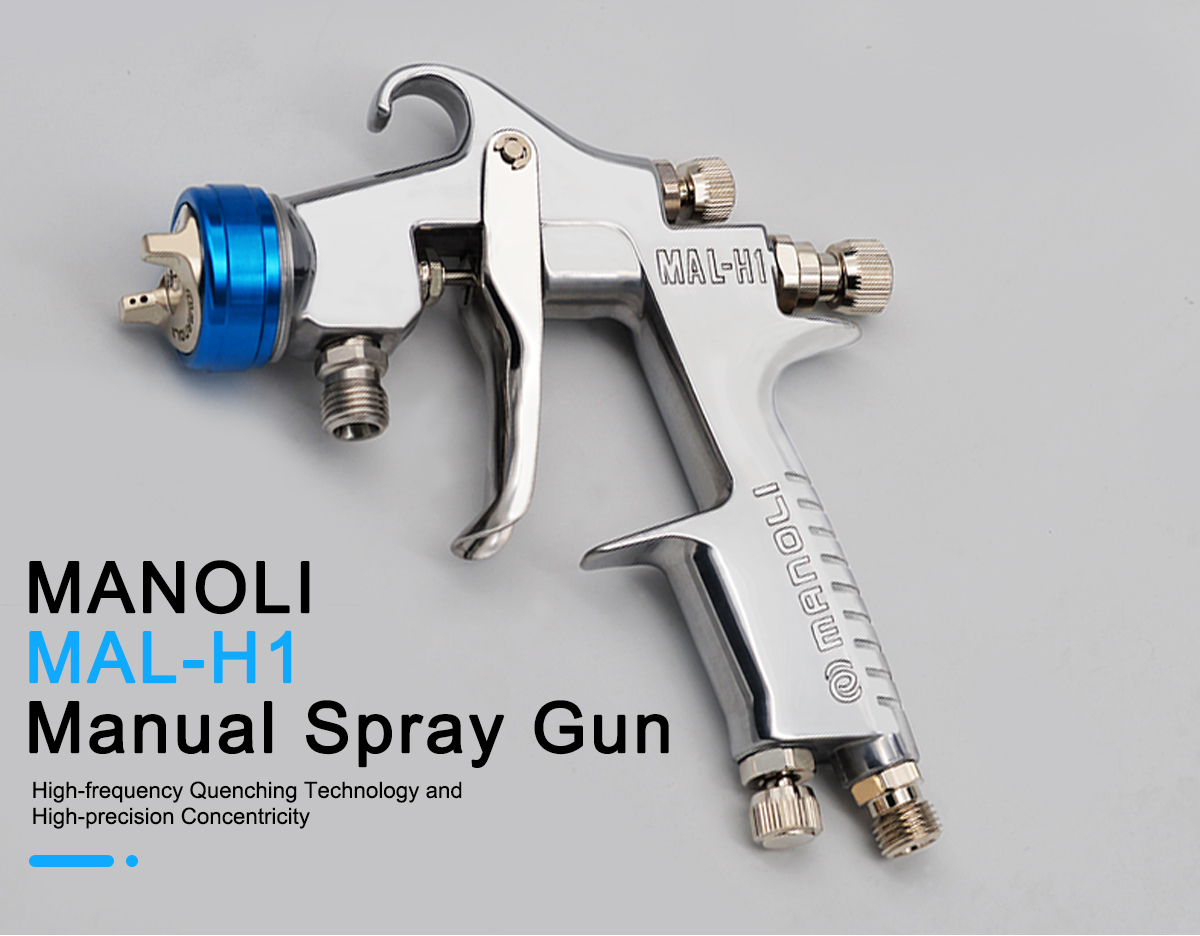

MANOLI MAL-H1 Manual Spray Gun
High-frequency Quenching Technology and High-precision Concentricity

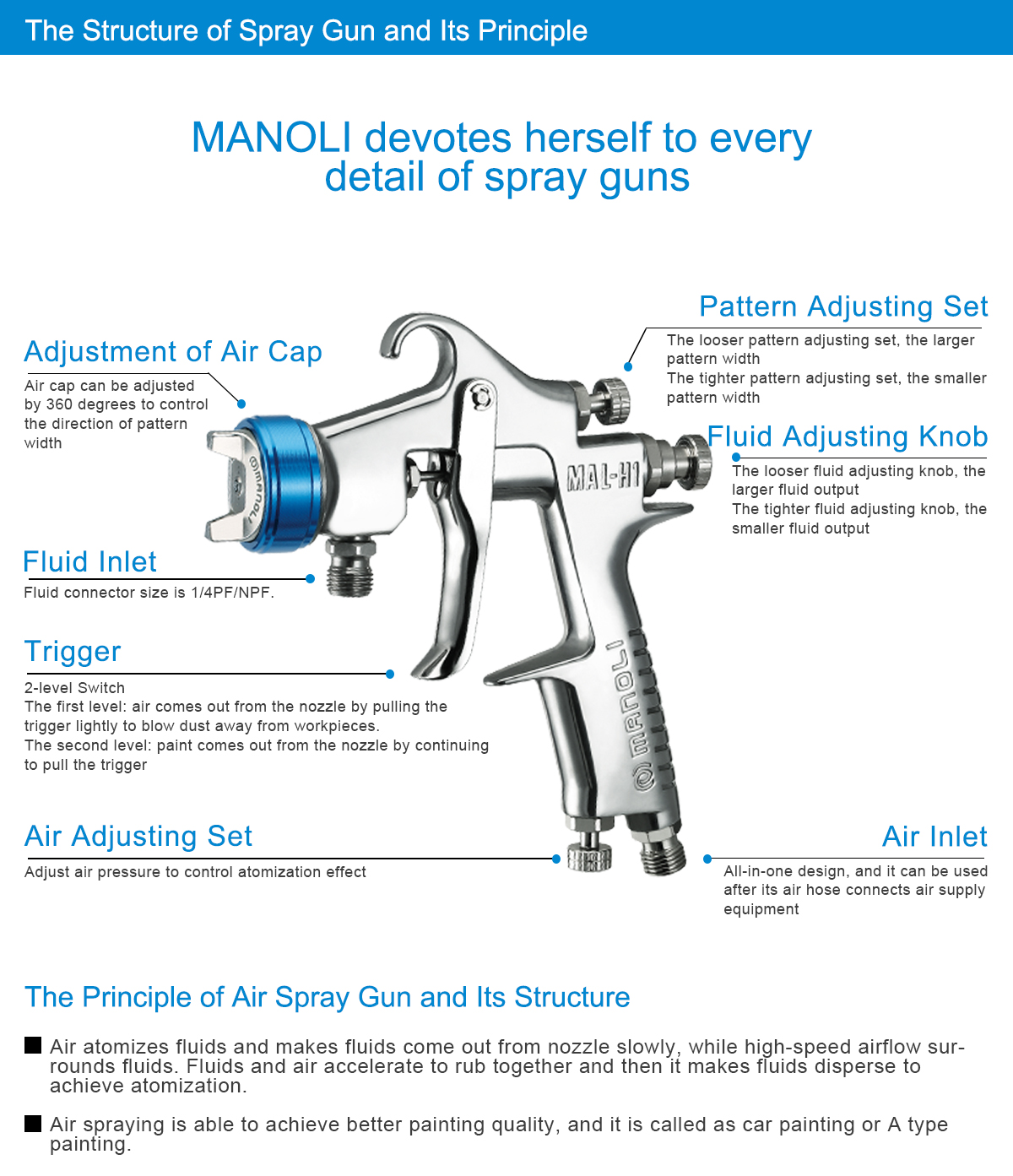

The Structure of Spray Gun and Its Principle MANOLI devotes herself to every detail of spray guns
Adjustment of Air Cap Air cap can be adjusted by 360 degrees to control the direction of pattern width
Trigger 2-level Switch The first level: air comes out from the nozzle by pulling the trigger lightly to blow dust away from workpieces. The second level: paint comes out from the nozzle by continuing to pull the trigger
Air Adjusting Set Adjust air pressure to control atomization effect
Pattern Adjusting Set The looser pattern adjusting set, the larger pattern width The tighter pattern adjusting set, the smaller pattern width
Fluid Adjusting Knob The looser fluid adjusting knob, the larger fluid output The tighter fluid adjusting knob, the smaller fluid output
Air Inlet All-in-one design, and it can be used after its air hose connects air supply equipment

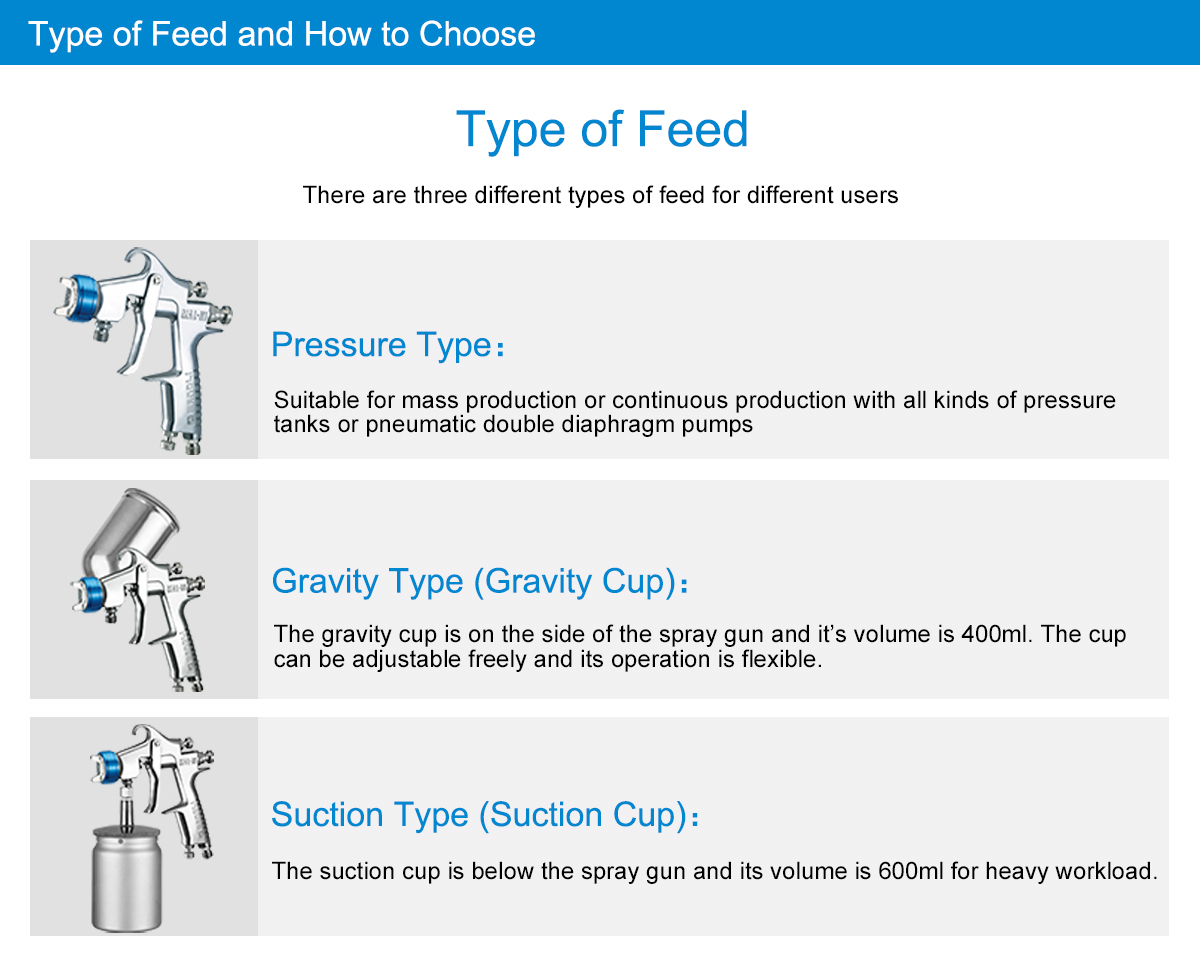

Type of Feed and How to Choose
Type of Feed There are three different types of feed for different users

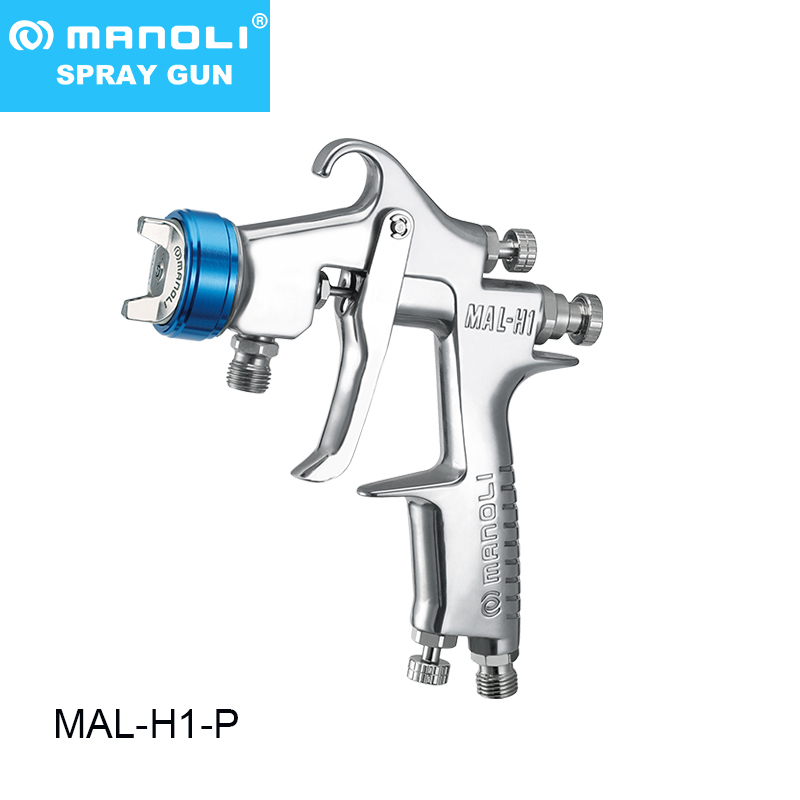

Pressure Type Suitable for mass production or continuous production with all kinds of pressure tanks or pneumatic double diaphragm pumps

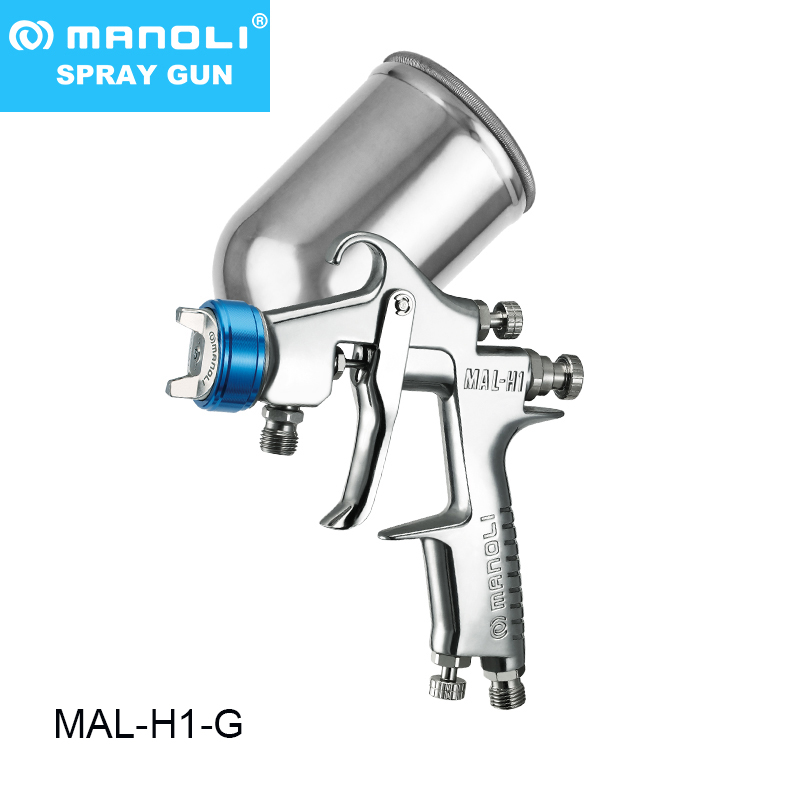

Gravity Type (Gravity Cup) The gravity cup is on the side of the spray gun and it’s volume is 400ml. The cup can be adjustable freely and its operation is flexible.

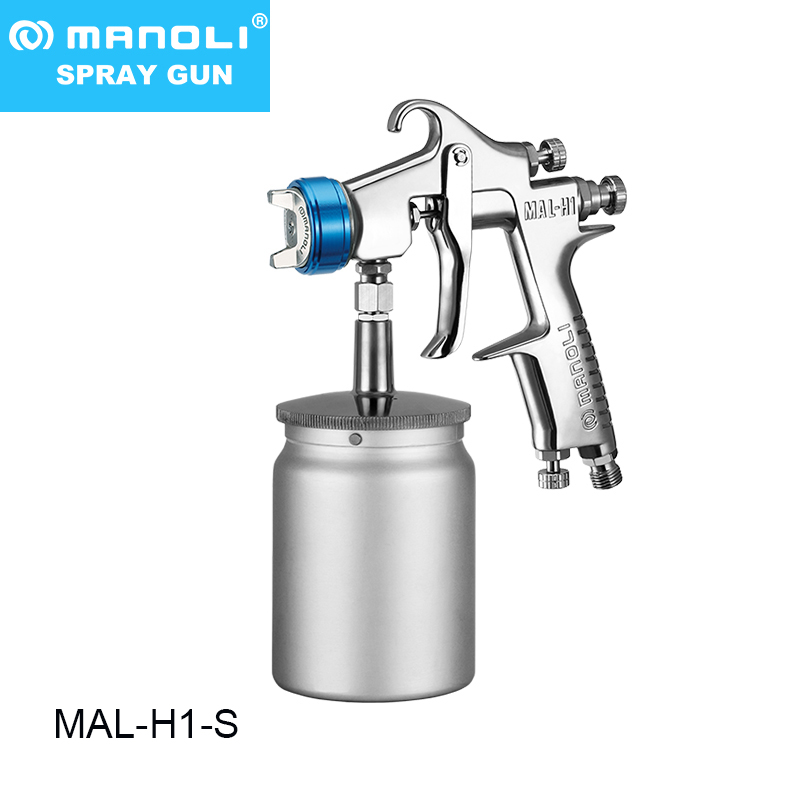

Suction Type (Suction Cup) The suction cup is below the spray gun and its volume is 600ml for heavy workload.
Characteristics of MAL-H1 Spray Gun
Appearance
Exquisite appearance and high-precision parts and accessories show our spirit to focus on high quality

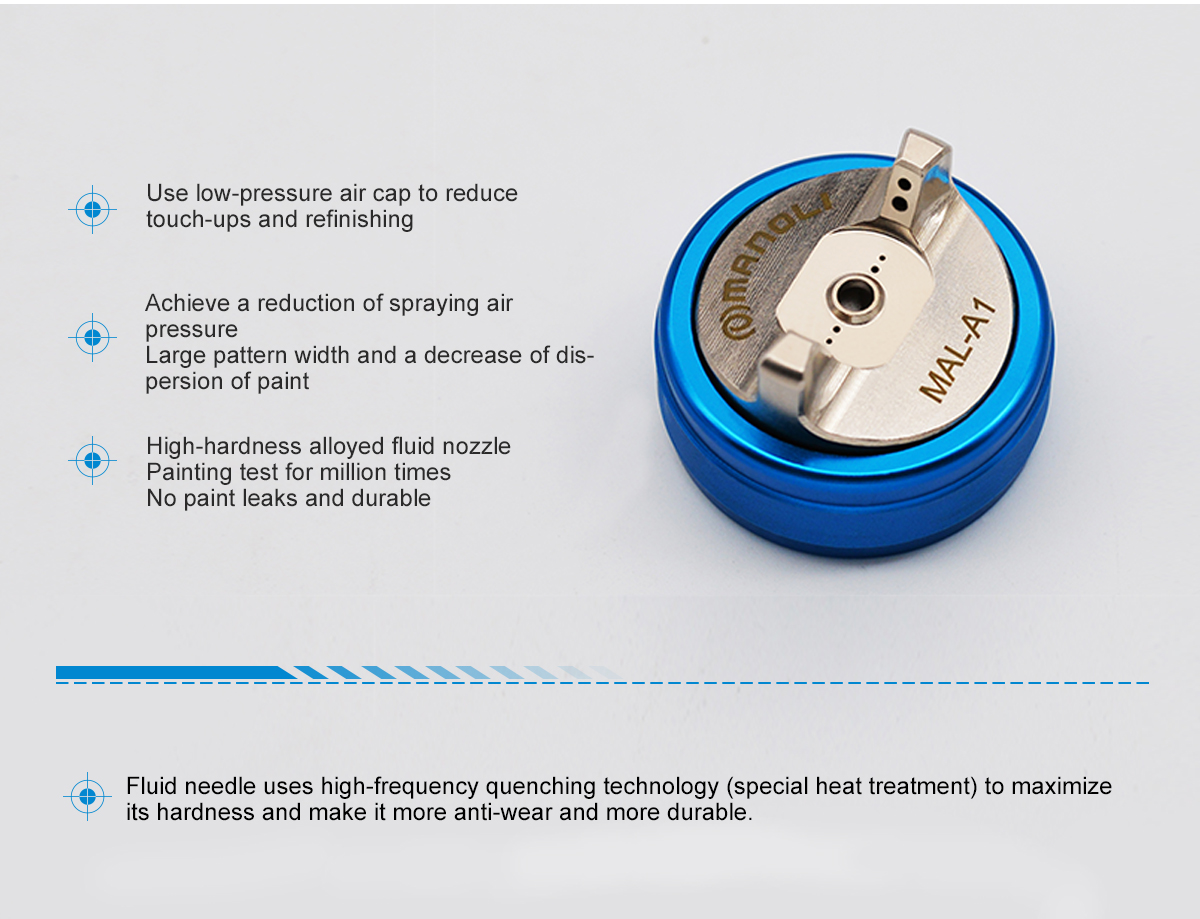

MANOLI MAL-H1 Spray Gun Use low-pressure air cap to reduce touch-ups and refinishing
Achieve a reduction of spraying air pressure Large pattern width and a decrease of dispersion of paint
High-hardness alloyed fluid nozzle Painting test for million times No paint leaks and durable
Fluid needle uses high-frequency quenching technology (special heat treatment) to maximize its hardness and make it more anti-wear and more durable.
Industries for MAL-H1 Spray Gun
Used in Multiple Painting Industries Suitable for metal, automobile, home decoration, wood, plastic, toy and so on

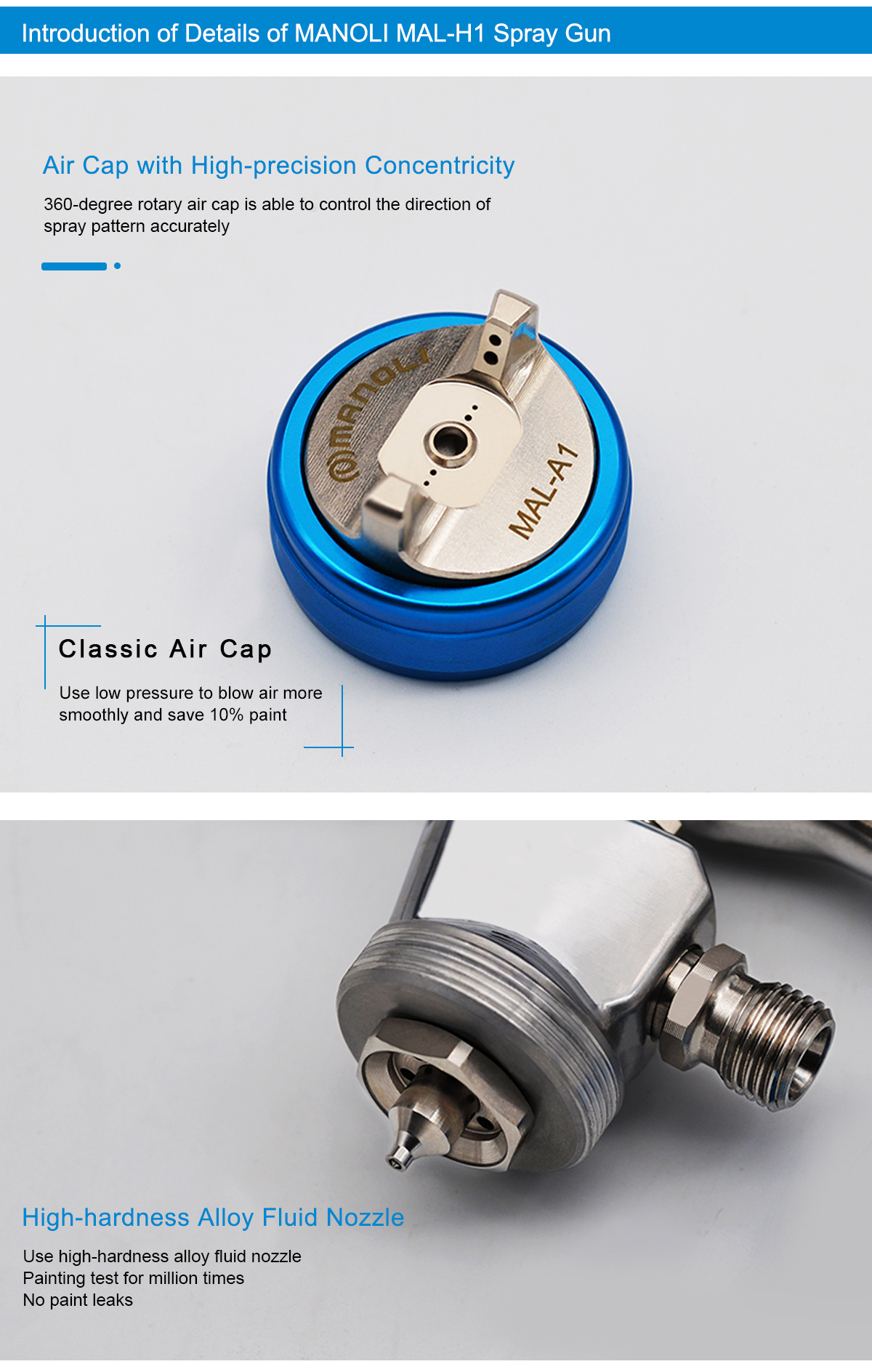

Introduction of Details of MANOLI MAL-H1 Spray Gun
Air Cap with High-precision Concentricity 360-degree rotary air cap is able to control the direction of spray pattern accurately
Classic Air Cap Use low pressure to blow air more smoothly and save 10% paint
High-hardness Alloy Fluid Nozzle Use high-hardness alloy fluid nozzle Painting test for million times No paint leaks

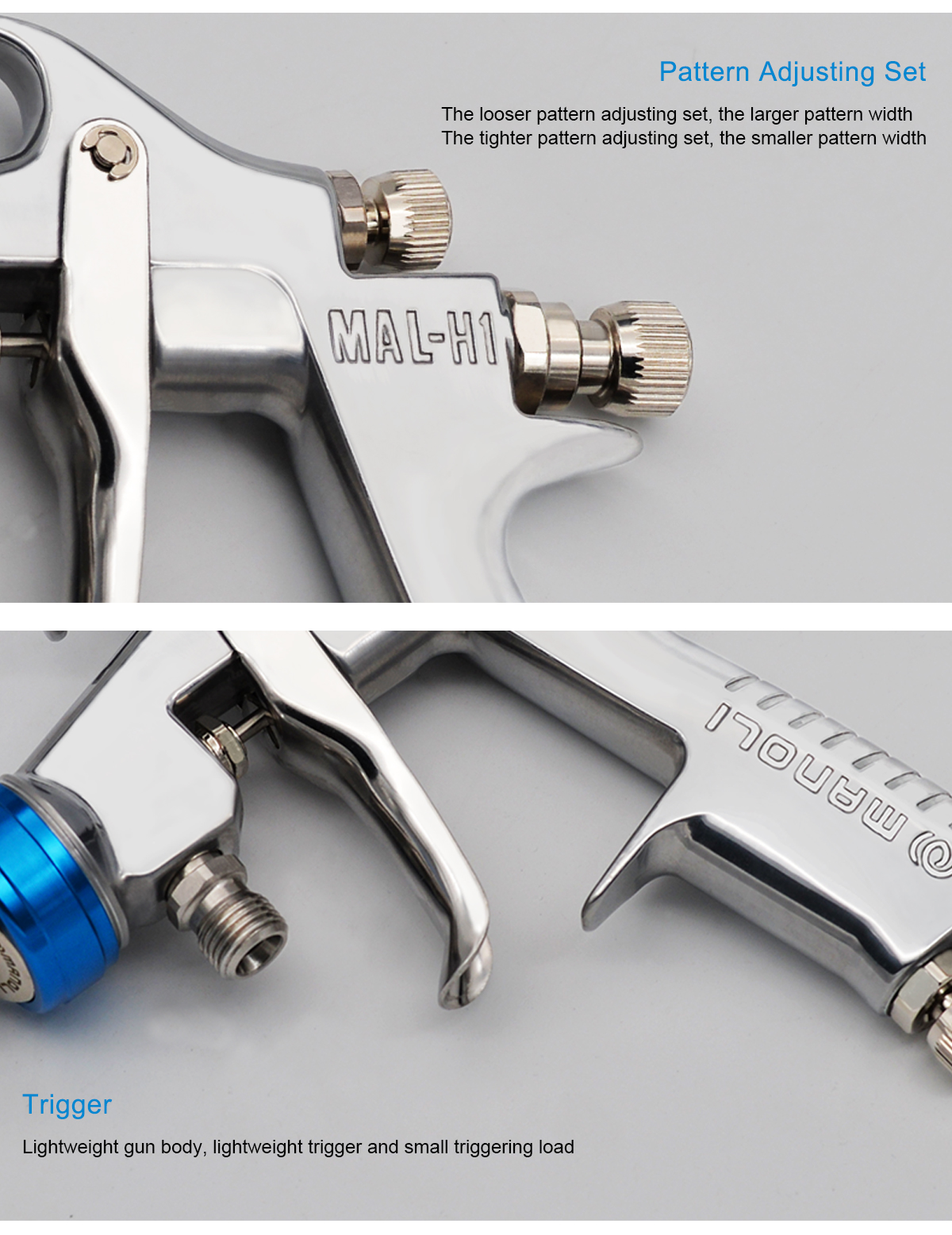

Pattern Adjusting Set The looser pattern adjusting set, the larger pattern width The tighter pattern adjusting set, the smaller pattern width
Trigger Lightweight gun body, lightweight trigger and small triggering load Air Adjusting Set All-in-one design, and it can be used after its air hose connects air supply equipment
The Principle of Air Spray Gun and Its Structure
Air atomizes fluids and makes fluids come out from nozzle slowly, while high-speed airflow surrounds fluids. Fluids and air accelerate to rub together and then it makes fluids disperse to achieve atomization. Air spraying is able to achieve better painting quality, and it is called as car painting or A type painting.
Advantages of Our Company Abundant common products can meet the needs of different production lines Advantage of Brand 16-year brand MANOLI has more than 16 years of rich experience and provides services for more than 2,196 customers directly or indirectly, including large enterprises, such as KONE, GUANGRI, YINLONG NEW ENERGY, BYD and so on. Advantage of Products 64 Different Kinds of Products All of MANOLI products have 10 large types, 64 models and 2,516 product parts and accessories to meet the needs of customers from different kinds of industries. All of MANOLI products are enough and in stock. Advantage of Quality Factory Provides the Original Products MANOLI is a professional air spray gun manufacturer which provides all different kinds of not only standard spray guns but also OEM products directly for our customers. MANOLI products have been tested in the market and they are so good and durable. Advantage of Services 5S Class Service Support MANOLI provides free services, such as troubleshoot problems on the spot, option of products, parts and accessories supply, maintenance, service consulting, OEM, etc. After-sales service team promises to solve customers’ problems within 24 hours.

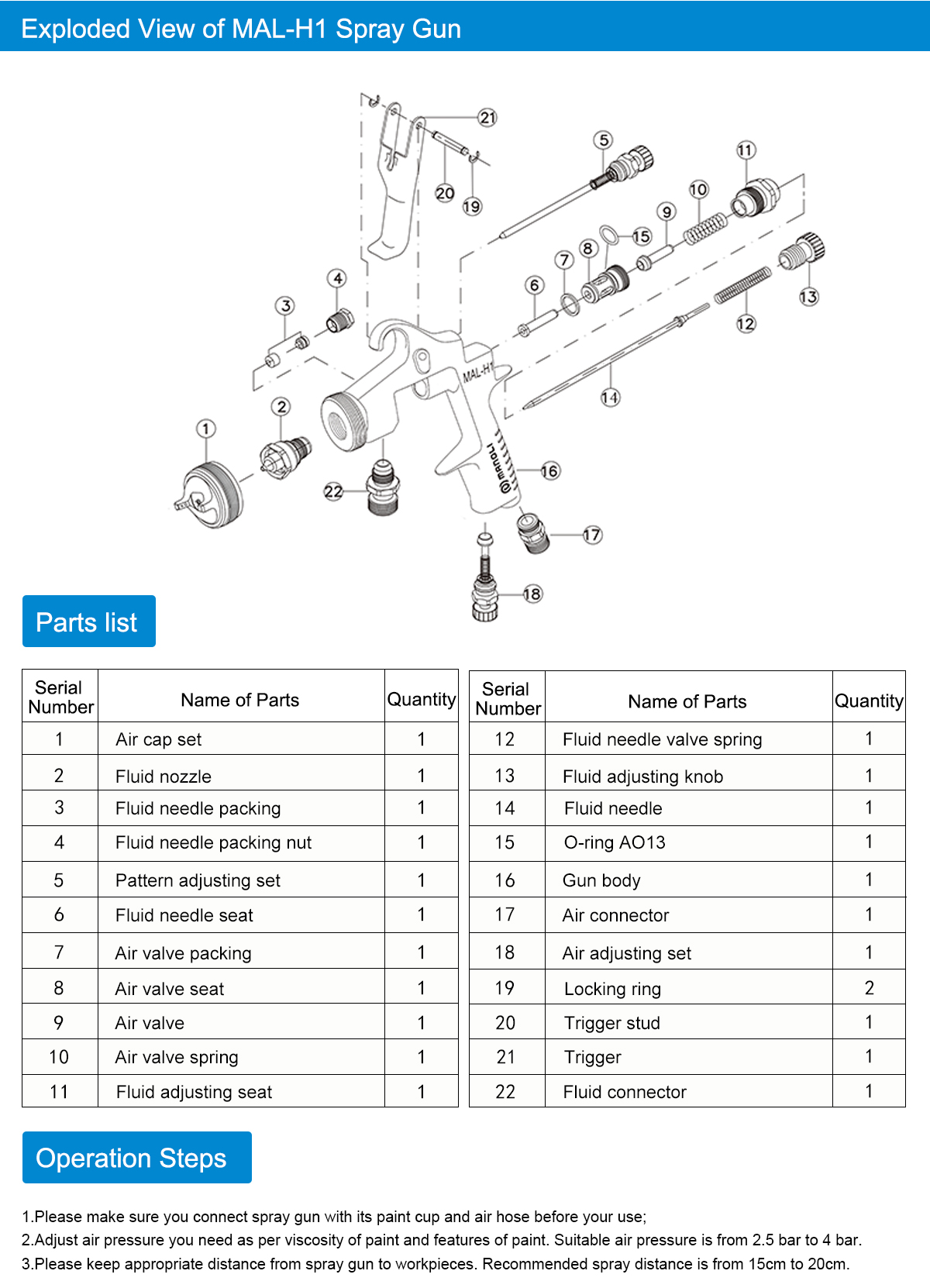

Operation Steps 1.Please make sure you connect spray gun with its paint cup and air hose before your use; 2.Adjust air pressure you need as per viscosity of paint and features of paint. Suitable air pressure is from 2.5 bar to 4 bar.
3.Please keep appropriate distance from spray gun to workpieces. Recommended spray distance is from 15cm to 20cm.
